Rectifier Duty Transformers

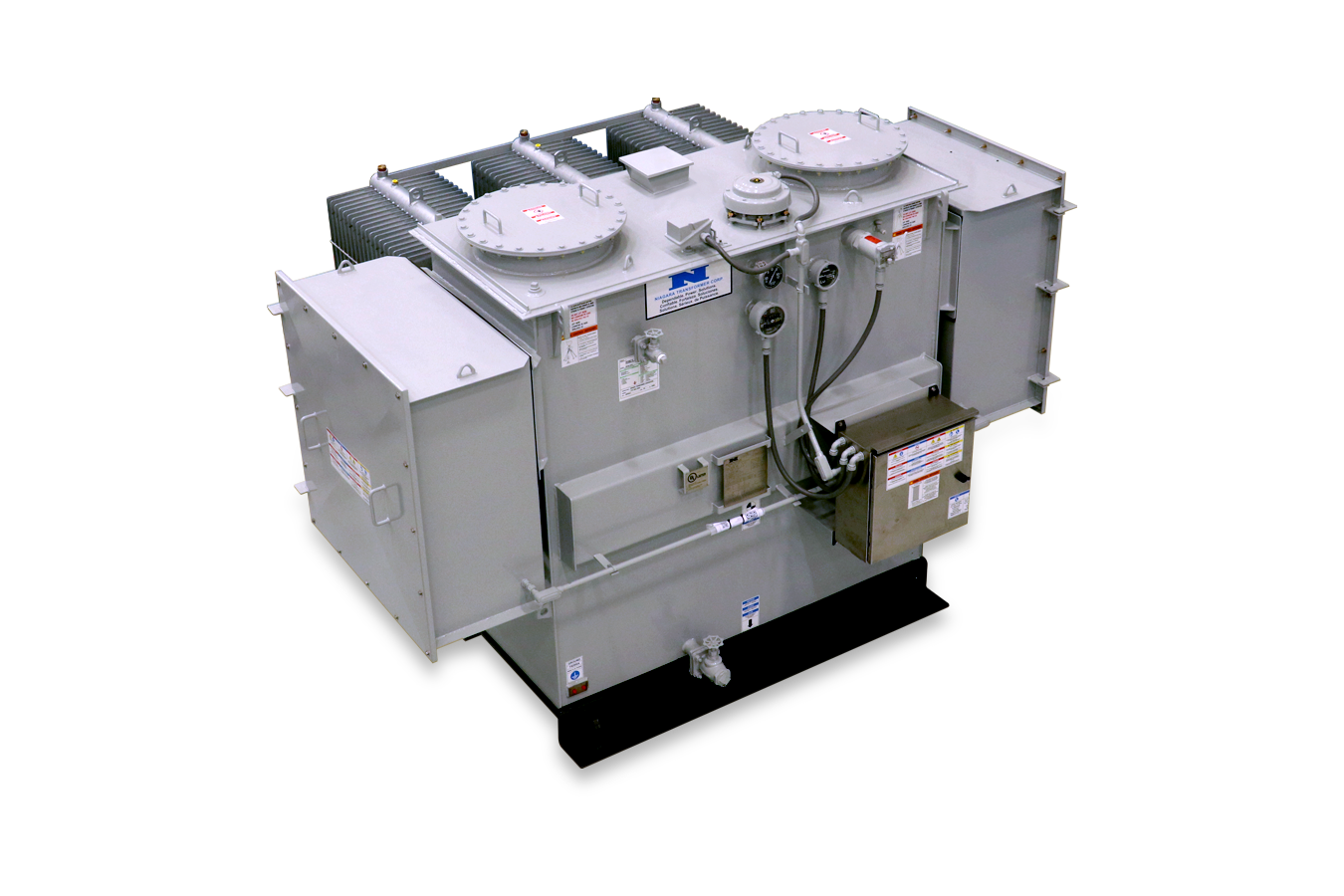

Rectifier Duty Transformers are designed to handle non-linear, non-sinusoidal loads resulting from their use with a variety of power electronic applications such as diode, thyristor or motor drive configurations from 6,12,24,36,48, or 60 pulse configurations. Special design considerations should be used to account for the additional harmonic heating, more severe axial forces, severe overloads and short circuit forces that can be seen as compared with a standard power transformer. Niagara Transformer’s superior engineering expertise paired with its unmatched years of manufacturing experience and high-grade materials allow them to provide the best in-class Rectifier Duty Transformers.

Transformer Specifications

  • Specialty circuit configurations
  • Multiple pulse applications
  • Up to 50 MVA base rating
  • Up to 138 kV, 650 kV BIL
  • Copper or aluminum wound
  • Designed to meet specific harmonic spectrums
  • Industry leader in process and high current applications
  • Seismic classifications
  • Mineral Oil, Enviro Temp FR3, Luminol, or other liquids
  • Sealed tank or conservator tank designs
  • Special dimensional requirements
  • Non-standard elevation and ambient designs
  • Special service conditions
  • Meets ANSI/IEEE Standard C57.18.10

Types of Rectifier Duty Transformers

  • Drive Duty Transformers
  • 6, 12, 18, 24, 36 Pulse Rectifier Duty Transformers
  • Variable Speed Drive Duty Transformers
  • Drive Output Transformers

  • Process High Current Duty Transformers
  • Extra Heavy-Duty Traction Transformers
  •
Multiple Phase Shifted Windings Transformers

  • Static Frequency Converter Transformers
  • High Current Rectification Transformers
  • Cycle Converter Transformers

USED IN THESE INDUSTRIES

  • Aerospace
  • Automotive
  • Bio Gas Power
  • Cement
  • Chemical
  • Concentrated Solar Power
  • Electric Utilities
  • Electrochemical
